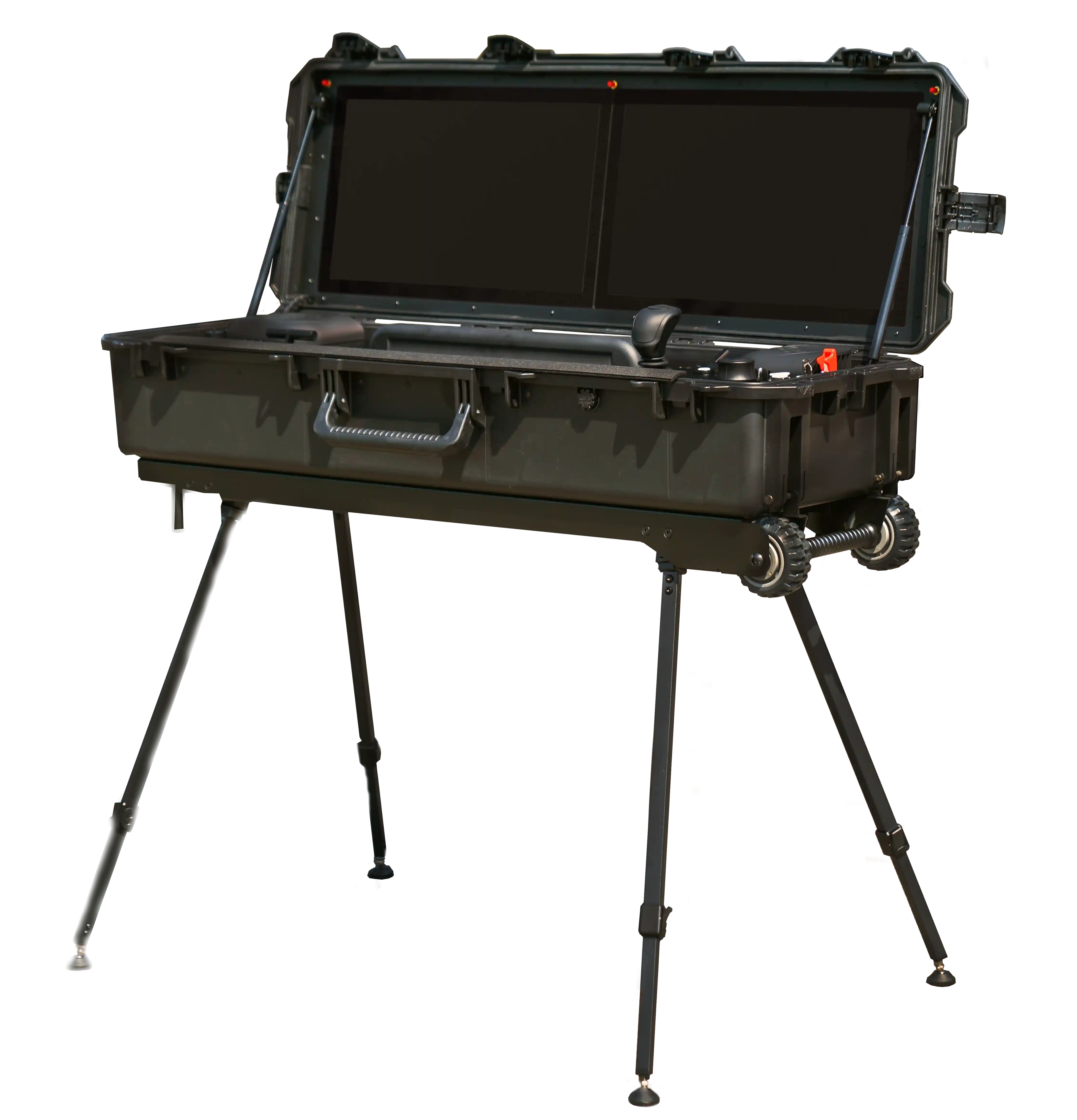

G2Nav

A universal and radio agnostic ground control station for the operation of professional robotic solutions across various industries, sectors, and technologies. The G2Nav offers performance, durability, and a modular platform enabling a wide range of customizations. The G2Nav is a dynamic ground control platform, offering greater control in scenarios where mobility is not the only driving factor. With the G2Nav you get a ground control platform that is easy to transport and easy to mount with all the control options that you would expect from a professional ground control platform.

Datasheet
Request quote
Interfaces Dimensions Computer Power Branding
Left side components
  • 3 x USB Connector
  • 2 x RJ45 Connector
  • HDMI Connector
  • 2 control link interfaces
Center - Human interface
  • Keyboard with US QWERTY layout and numpad
  • Mouse-trackpad or trackball
  • Storage compartment
Right side components
  • Info battery displays
  • 2 LED indicators
  • Tickle charging barrel connector
  • 3 fuse panels
  • AC/DC inputs
Left side HID
  • Hall-effect T-bar fader controller
  • Cluster of 4 switches, 2 toggles, 2 push buttons
Right side HID
  • 5D Pad
  • APEM HF series joystick with two pushbuttons
  • MEGATRON SpaceMouse®
  • Cluster of 3 switches, 3 toggles
  • Keyswitch for power on/off
  • Power on toggle switch with guard
2x HID Displays
  • Resistive touch, works with gloves and wet hands
  • Screen size: 2x 21.5 inch
  • Full HD: 1920 x 1080
  • 170 degree horizontal viewing angle
  • Back light Up to 1500 nits
  • Optical bonded screens
  • 3x SMA connectors

* = Optional

Screen size
  • 2x 21.5 inch
Weight without legs
  • 99 lbs / 45kg
Weight with legs
  • 121 lbs / 55kg
Dimension without legs
  • 121 x 42 x 23 cm / 47.6 x 16.5 x 9 inch
Dimension with legs
  • 121 x 42 x 32 cm / 47.6 x 16.5 x 12.6

* = Optional

Computer
  • CPU Intel® Core™ i5 - 10500T 6 Core
  • 2.3 GHz up to 3.80 GHz
  • Graphics Intel UHD 630
  • RAM 16 GB DDR4-3200
  • Storage 256 GB SSD
  • Wireless Dual band WiFi and bluetooth
  • OS Windows or Linux flavour of choice

* = Optional

AC Power supply
  • Universal mains, 50/60 Hz 100-240VAC up to 400W
DC Power supply
  • DC Power supply 12-28 VDC up to 400W, surge protected and reverse polarity protected
Emergency Power
  • Up to 30 minutes of emergency power

* = Optional

Branding & Configuration
  • Custom logo
  • Custom colors
  • Custom joystick layout
  • Custom engraving
  • Custom firmware

* = Optional
